PHASED ARRAY ULTRASONIC TESTING COURSE

COURSE DESCRIPTION

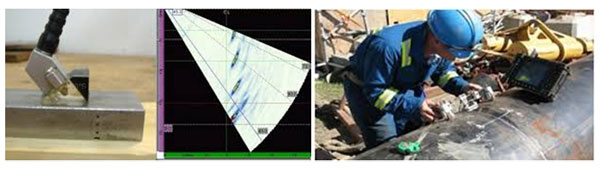

Phased array ultrasonic testing course provides the knowledge required to operate equipment and perform manual & encoded phased array testing on welds. The course covers theoretical aspects on phased array application, its advantages and limitations, application of phased array. It also includes requirements of code & standards. The course also covers in depth practical aspects for application of Phased Array on welds in Pipes & Plates using required accessories such as calibration blocks, validation samples, encoders, scanners etc. For this course we strongly recommend participants possess hands on experience in UT weld examination as Level II.

BRIEF TOPICS (some topics may not be applicable or limited for Level 1 personnel)

  • Phased array theory and application
  • System configuration
  • Plotting DAC, TCG
  • Calibration and Validation
  • Selection of parameters for PAUT on welds
  • Creation of setup files
  • Testing of specimen samples
  • Data acquisition & verification of data
  • Data analysis and Data Auditing
  • Locating, Flaw characterization and sizing

COURSE DURATION

  • 8 Days (80 hours) for qualification to SNT TC 1A Level 2

WHO SHOULD ATTEND

Level I UT personals aspiring to acquire the proficiency in testing using encoded phased array ultrasonic testing.

CERTIFICATION

This course provides access to examination based SNT TC 1A NDT Level 1 or Level 2.

COURSE EQUIPMENT AND MATERIALS

We provide training material, Omni scan equipment & probes, calibration blocks and sample specimens for practical training.
